PU swivel castor with brake 125 mm - ball bearing - 200 kg
Show all:
Casters,Polyurethane wheels
Description
PU swivel castor with brake 125 mm with ball bearing and plate - 200 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Sheet steel pressed fork (galvanised) with a sealed double ball swivel.
Wheels with greypolyurethane tyres (98 Shore), injected onto a polyamide rim with a centred ball bearing and wheel caps.
Read more

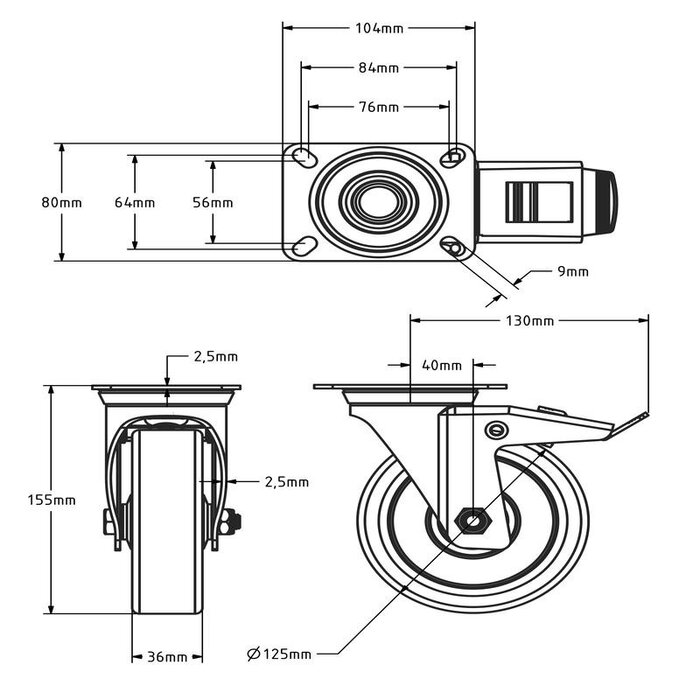

Specifications
- Article number: 435.221
- Wheel diameter: 125 mm
- Wheel width: 36 mm
- Building height: 155 mm
- Plate size: 104 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 200 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Rim: Polyamide (PA6)
- Wheel bearing: Central ball bearing with wheel covers
- Bandage: Polyurethane, injected
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 3
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
Show all
Specifications
- Article number: 435.221
- Wheel diameter: 125 mm
- Wheel width: 36 mm
- Building height: 155 mm
- Plate size: 104 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 200 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Rim: Polyamide (PA6)
- Wheel bearing: Central ball bearing with wheel covers
- Bandage: Polyurethane, injected
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 3
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
