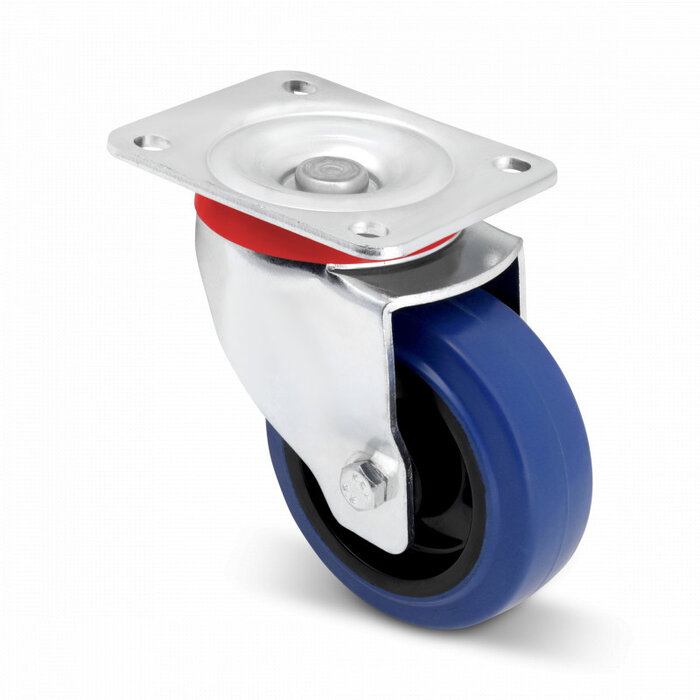

Reinforced blue rubber swivel castor 100 mm - roller bearing - 180 kg
Show all:
Casters,Rubber wheels
Description
The reinforced 100 mm blue swivel caster is often used under high-quality flight cases that are used very intensively. The swivel caster is designed to ensure that the equipment in the flight case has as few vibrations as possible, but can also be easily moved, combined with high durability. The top plate is firmly riveted to the fork legs with a thickened rivet. This ensures that the swivel fork is resistant to lateral shocks, prolonged vibrations and peak loads.
- Durable: With a 4 mm top plate and 3.5 mm fork legs, this caster is robust and reliable.
- Comfort: The reinforced fork combined with the soft tire create minimal vibrations, preventing damage to the equipment.
- Suitable for very intensive and robust use. The caster is ideal for high-quality flight cases and heavy industrial applications.
Read more

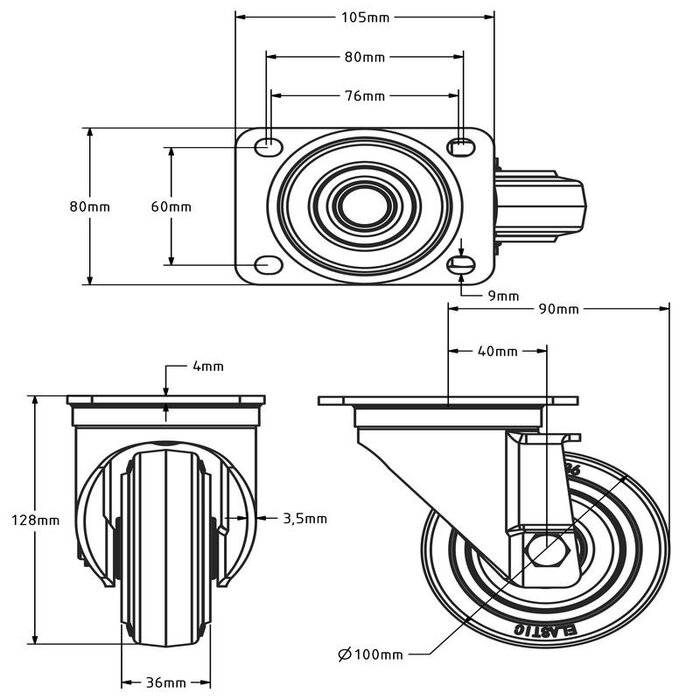

Specifications
- Article number: 426.115.V
- Wheel diameter: 100 mm
- Wheel width: 36 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 180 kg
- Gaff rash: 40 mm
- Type of wheel: Caster
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Blue elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat Surface and Outdoor Terrain
