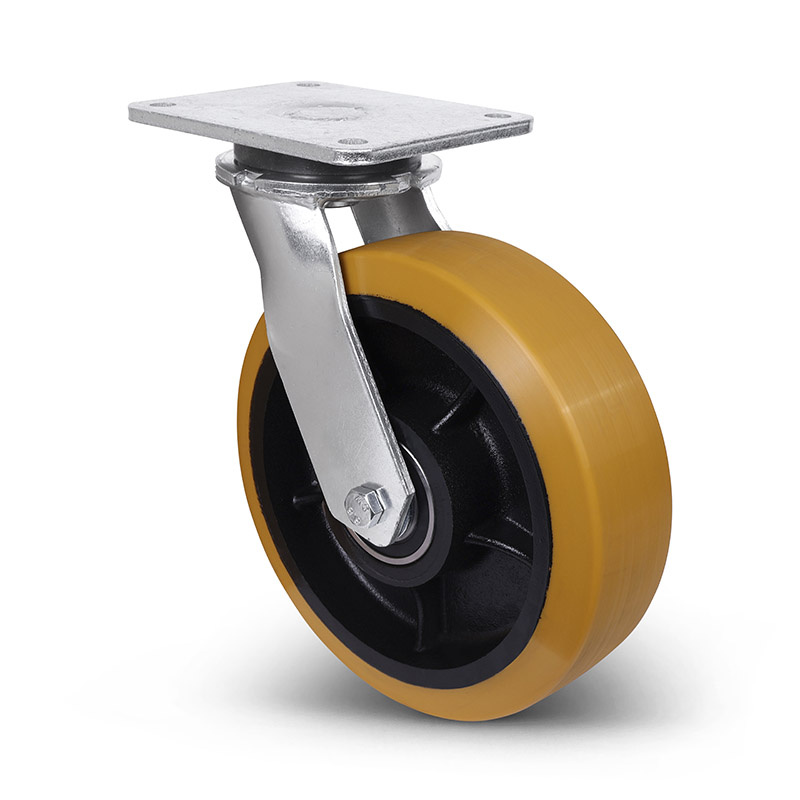

PU swivel caster 250 mm – ball bearings – 1,500 kg
Polyurethane, steel-welded swivel castor 250 mm - 1500 kg
This 250 mm swivel caster has a highly robust welded-steel fork and a cast-iron wheel with a polyurethane tread. This makes it particularly suitable for heavy-duty applications, uneven surfaces and environments where collisions or heavy lateral loads may occur.
The swivel fork has an 8 mm mounting plate and a sturdy swivel race with an axial thrust bearing and a tapered roller bearing. The swivel race is well sealed and lubricated, and can be relubricated if necessary. The welded construction provides extra strength.
The polyurethane tread is vulcanized onto a cast-iron hub and offers good resistance to wear, tearing and cuts. Thanks to its two precision ball bearings, the wheel has low rolling resistance and rolls smoothly, even under heavy loads.
Discounts are available from 12 pieces; see the volume prices or contact us for a quotation.
- Article number: 532.255
- Wheel diameter: 250 mm
- Wheel width: 73 mm
- Building height: 305 mm
- Plate size: 175 x 140 mm
- Bolt hole spacing: 140 x 105 / 133 x 76 - Ø 14 mm
- Carrying capacity: 1.500 kg
- Gaff rash: 80 mm
- Type of wheel: Swivel caster
- Assembly: Plate mounting
- Fork: Welded steel, galvanized
- Rim: Cast Iron
- Wheel bearing: Double ball bearing, evenly distributed
- Bandage: Polyurethane, vulcanized
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Smooth and rough surfaces
