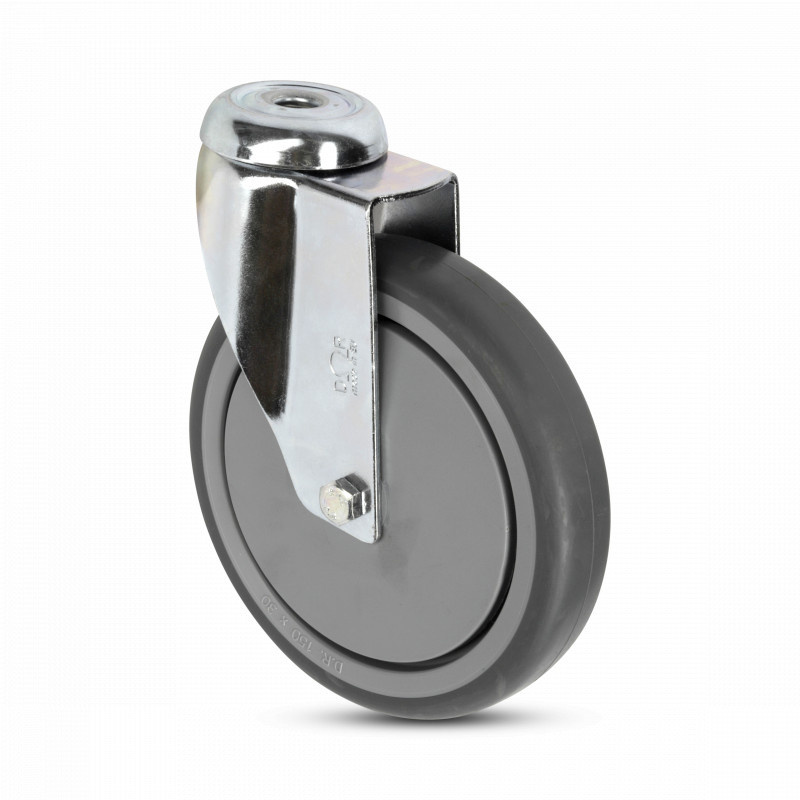

Appliance castor wheel 150 mm - ball bearing - 100 kg
User-friendly and maintenance-free
This narrow device wheel is intended for light applications that are not heavily loaded and used in a robust manner. The swivel castor is suitable for light devices, display stands, catering applications, and industrial kitchens. The wheels contain a precision ball bearing, secured with two hub caps that keep dust and dirt out. The swivel head is firmly riveted and has minimal play. The galvanized swivel fork has a double ball track, which is almost completely sealed and lubricated for its entire service life.
Low rolling resistance
The 150 mm wheels have a polypropylene rim with two wheel caps, which are clicked into the precision ball bearing. The combination of wheel caps and ball bearing ensures tension-free rotation, resulting in low starting resistance and long rolling continuity. The wheel caps protect the bearing and hub from dust, dirt, and threads, which increase rolling resistance in the long term. With a diameter of 150 mm, the wheels offer a higher construction height and smoother rolling movement. The tire is made of thermoplastic rubber (TPR), which has a medium hardness and offers light cushioning.
Optional: Fastening with expander
The heavy-duty swivel castors can be attached with an expander that clamps into a sleeve or tube. The expanders have a range of 17 to 40 mm and are widely used for tables, racks, warehouse trolleys, display racks, and serving trolleys.
- Article number: 347.630
- Wheel diameter: 125 mm
- Wheel width: 30 mm
- Building height: 185 mm
- Bolt hole diameter: 12.2 mm
- Carrying capacity: 100 kg
- Gaff rash: 46 mm
- Type of wheel: Caster
- Assembly: Bolt hole attachment
- Fork: Steel, galvanized
- Rim: Polypropylene
- Wheel bearing: Single ball bearing, centered
- Bandage: Gray Thermoplastic rubber (TPR), injected
- Tyre hardness: approx. 88 shore A
- Rolling resistance: 3
- Wear-resistant: 3
- Soundproof: 3
- Temperature: - 20 / + 60 °C
- Suitable for: Flat and rough surface
- Article number: 347.630
- Wheel diameter: 125 mm
- Wheel width: 30 mm
- Building height: 185 mm
- Bolt hole diameter: 12.2 mm
- Carrying capacity: 100 kg
- Gaff rash: 46 mm
- Type of wheel: Caster
- Assembly: Bolt hole attachment
- Fork: Steel, galvanized
- Rim: Polypropylene
- Wheel bearing: Single ball bearing, centered
- Bandage: Gray Thermoplastic rubber (TPR), injected
- Tyre hardness: approx. 88 shore A
- Rolling resistance: 3
- Wear-resistant: 3
- Soundproof: 3
- Temperature: - 20 / + 60 °C
- Suitable for: Flat and rough surface
