Stainless steel swivel castor 80 with brake - Elastic rubber - 110 kg
Show all:
Casters,Stainless steel castors
Description

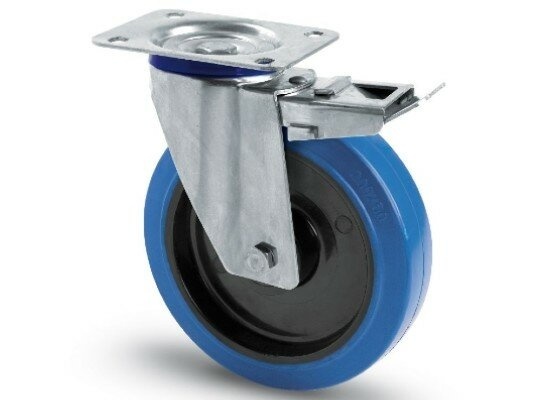

Stainless steel swivel castor 80 mm with brake and blue elastic rubber tyre
Stainless steel swivel castors with plate mounting.
Pressed sheet steel fork (Aisi 304) with a sealed double ball bearing swivel.
The brake locks the swivel bearing and the wheel simultaneously.
Wheels with a blue elastic rubber tyre (approx. 65 Shore A), vulcanised on a black polyamide rim with a stainless steel roller bearing.
Non-marking, the grey tyre does not leave marks and has very low rolling resistance.
Read more
Specifications
- Article number: 665.111
- Wheel diameter: 80 mm
- Wheel width: 36 mm
- Building height: 108 mm
- Plate size: 100 x 85 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 110 kg
- Gaff rash: 43 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Stainless steel / Inox (304 AISI)
- Brake: Locks wheel and swivel simultaneously
- Rim: Polyamide (PA6)
- Wheel bearing: Stainless steel roller bearing / Needle roller bearing
- Bandage: Blue elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surface and outside area
