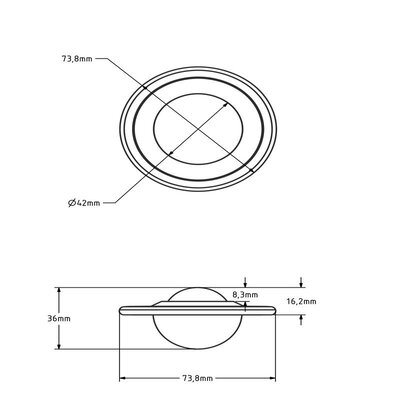

Stainless steel ball pot 31.7 mm - stainless steel ball roller - 125 kg

Stainless steel ball pot 31.7 mm with stainless steel ball roller - 125 kg

A ball pot with flange mounting, also known as a UFO or Saturn ball pot, consists of a stainless steel housing and a stainless steel ball. The built-in ball rolls on multiple supporting balls to create low friction. There is a drain hole for dirt under the housing. Suitable for radial and axial transport up to ½ m/s.

The minimum spacing is calculated by dividing the shortest length of the object to be transported by 3.5.

Note: If the ball pot is used upside down, the load capacity is reduced by 30%.
