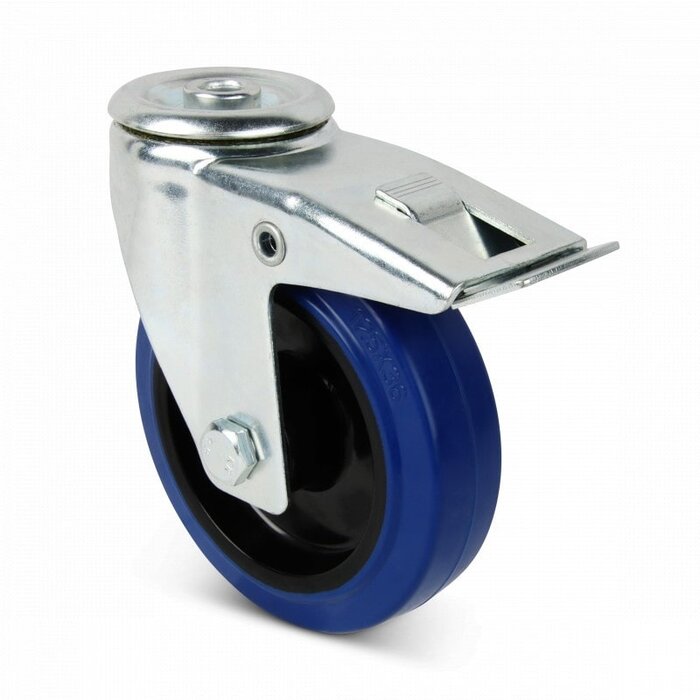

Rubber swivel castor with brake 80 mm - roller bearing - 110 kg
Show all:
Casters,Rubber wheels
Description
Swivel castor 80 mm with brake, blue elastic rubber tyre
Swivel castors with brake and bolt hole mounting.
Pressed sheet steel fork, 2.5 mm, (galvanised) with double ball bearing.
The brake locks the swivel ring and the wheel simultaneously.
Wheels with a blue elastic rubber tyre (approx. 65 Shore A), vulcanised on a black polyamide rim with a roller bearing.
Non-marking, the blue tyre does not leave marks and has very low rolling resistance.
Read more

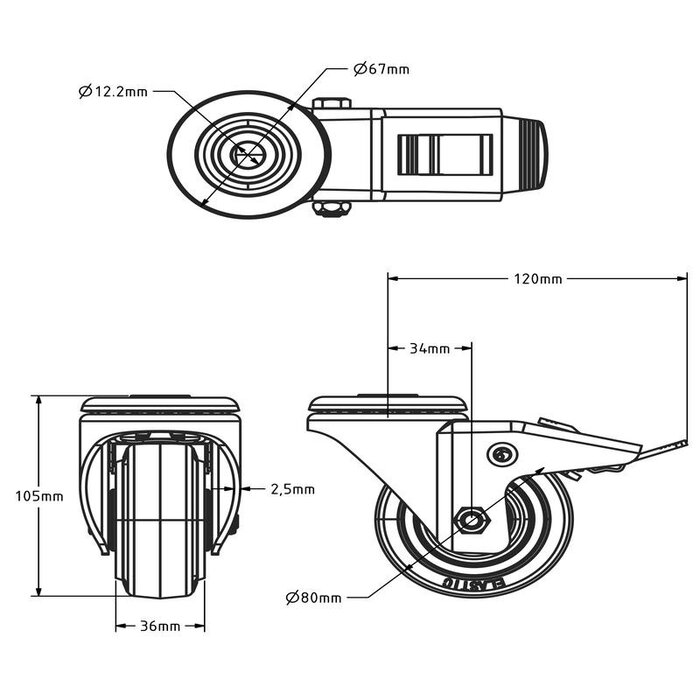

Specifications
- Article number: 426.511
- Wheel diameter: 80 mm
- Wheel width: 36 mm
- Building height: 105 mm
- Bolt hole diameter: 12.5 mm
- Carrying capacity: 110 kg
- Gaff rash: 34 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Blue elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat Surface and Outdoor Terrain
