Rubber swivel castor with brake 200 mm - roller bearing - 205 kg
Show all:
Casters,Rubber wheels
Description

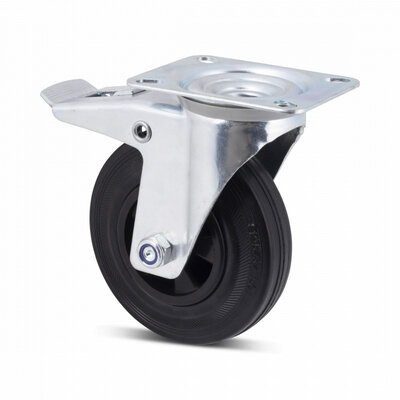

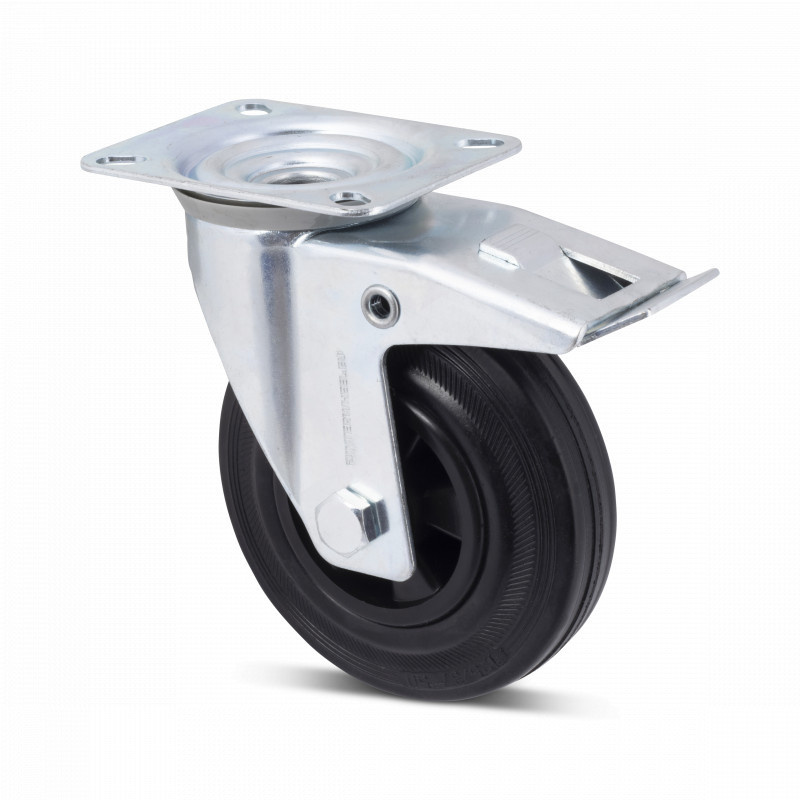

Rubber swivel castor with brake 200 mm with roller bearing and plate - 205 kg
Swivel castors with brakes and plate attachments.
Pressed steel fork (galvanised) with a sealed double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with black rubber tyres (82 Shore A) pressed onto black plastic rims with roller bearings.
Note: These wheels may leave marks on light-coloured floors.
Read more

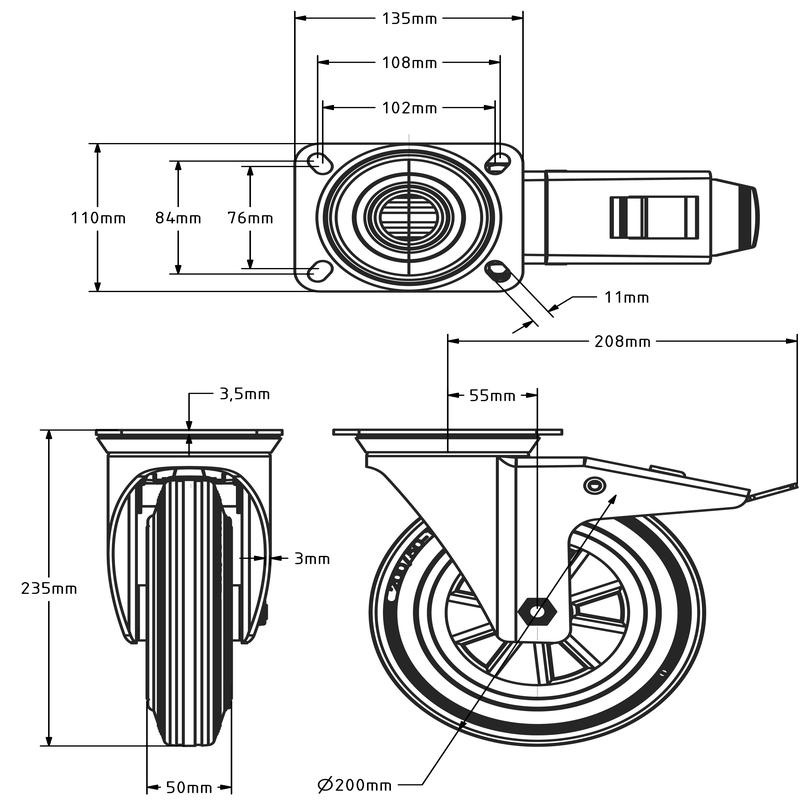

Specifications
- Article number: 417.141
- Wheel diameter: 200 mm
- Wheel width: 50 mm
- Building height: 235 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Carrying capacity: 205 kg
- Gaff rash: 55 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Rim: Polypropylene
- Wheel bearing: Roller bearing
- Bandage: Black rubber, pressed
- Tyre hardness: approx. 88 shore A
- Rolling resistance: 2.5
- Wear-resistant: 3
- Soundproof: 4
- Temperature: - 20 / + 60 °C
- Suitable for: Flat Surface and Outdoor Terrain
