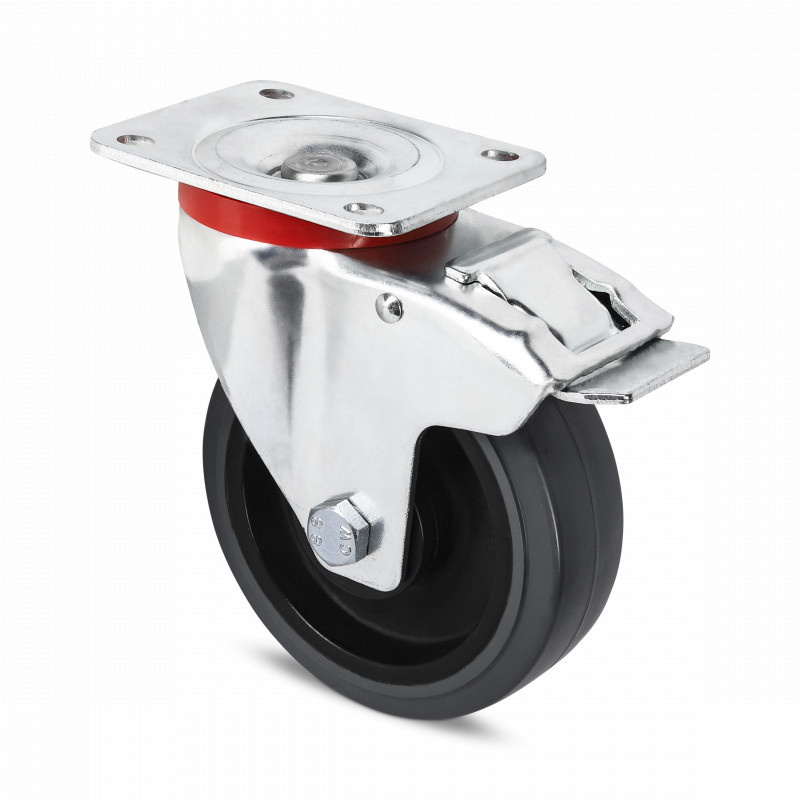

Rubber swivel castor with brake 100 mm - ball bearing - 150 kg
Show all:
Casters,Rubber wheels
Description
Rubber swivel castor with brake, 100 mm, with ball bearing and plate - 150 kg
Swivel castors with a plate attachment.
Reinforced sheet steel pressed fork (galvanised ) with a sealed double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with grey elastic rubber tyres (approx. 70 Shore A), vulcanised onto black polyamide rims with ball bearings and plastic wheel covers.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Read more

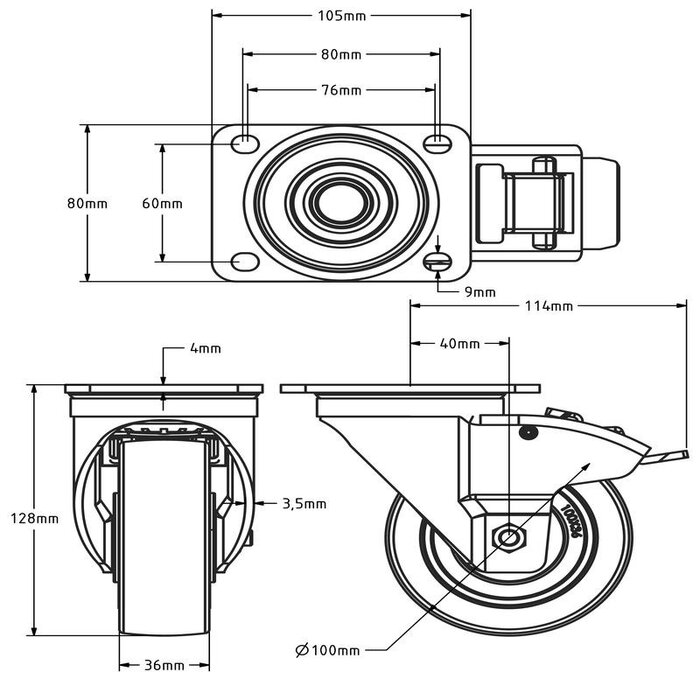

Specifications
- Article number: 412.216
- Wheel diameter: 100 mm
- Wheel width: 36 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 150 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Rim: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Bandage: Gray elastic rubber, vulcanized
- Tyre hardness: approx. 70 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surface and outside area
