Rubber swivel castor 80 mm - roller bearing - 110 kg
Show all:
Casters,Rubber wheels
Description

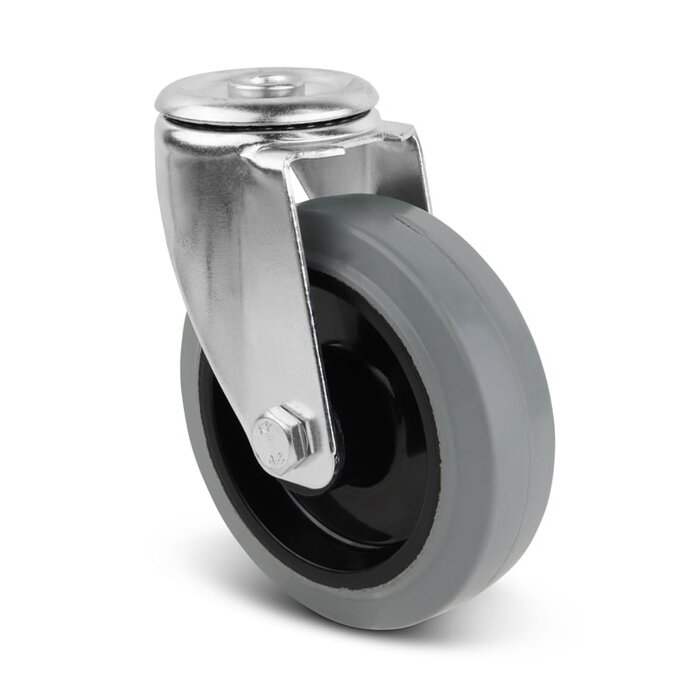

Swivel castor 80 mm with grey elastic rubber tyre
Swivel castors with bolt hole mounting.
Pressed sheet steel fork, 2.5 mm, (galvanised) with double ball bearing.
Wheels with a grey elastic rubber tyre (approx. 65 Shore A), vulcanised on a black polyamide rim with a roller bearing.
Non-marking, the grey tyre does not leave marks and has very low rolling resistance.
Read more

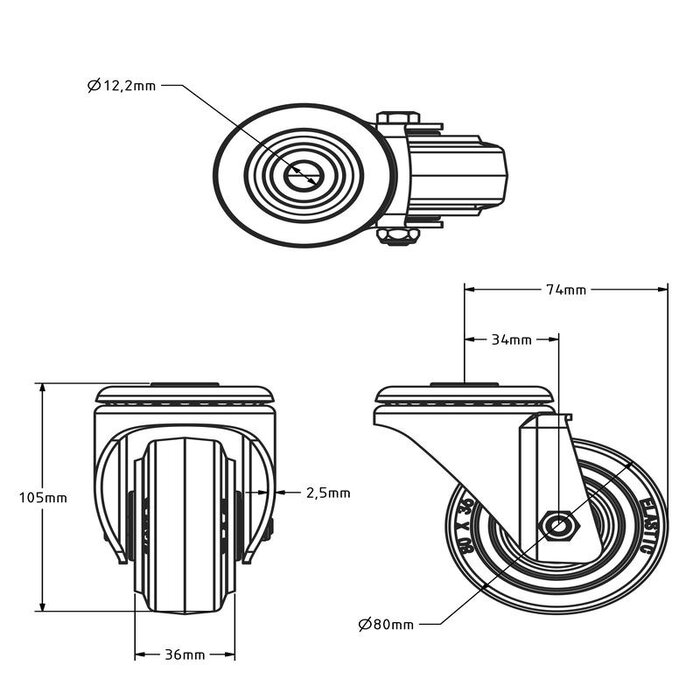

Specifications
- Article number: 413.510
- Wheel diameter: 80 mm
- Wheel width: 36 mm
- Building height: 105 mm
- Bolt hole diameter: 12.5 mm
- Carrying capacity: 110 kg
- Gaff rash: 34 mm
- Type of wheel: Caster
- Assembly: Bolt hole attachment
- Fork: Steel, galvanized
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing / Needle bearing
- Bandage: Gray elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surface and outside area
