Rubber swivel castor 125 mm - roller bearing - 220 kg
Show all:
Casters,Rubber wheels
Description

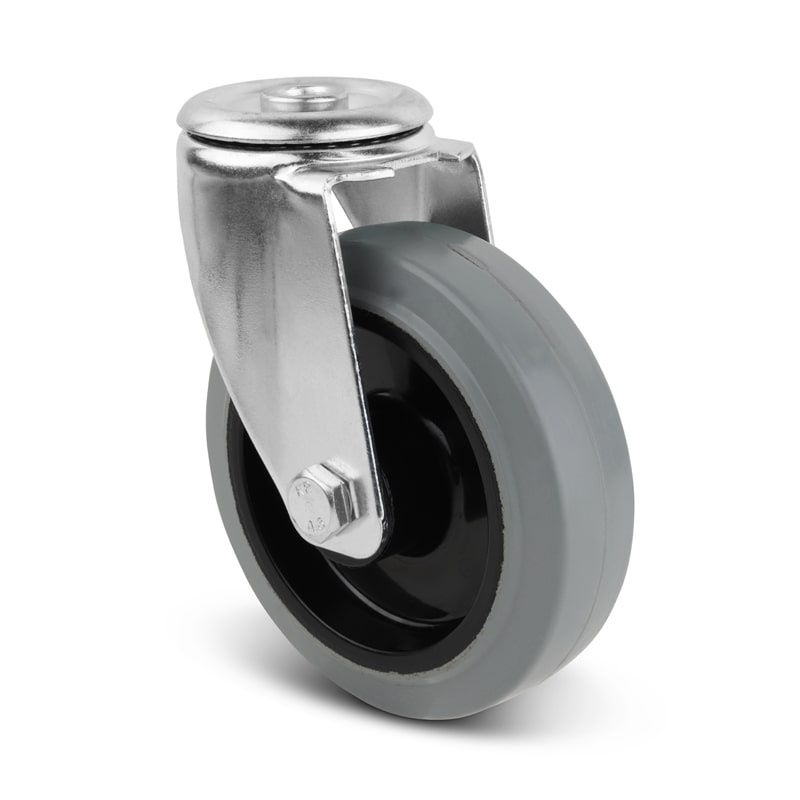

Swivel castor 125 mm with grey elastic rubber tyre
Swivel castors with bolt hole mounting.
Pressed sheet steel fork, 2.5 mm, (galvanised) with double ball bearing.
Wheels with grey elastic rubber tyre (approx. 65 Shore A), vulcanised on a black polyamide rim with roller bearing.
Non-marking, the grey tyre does not leave marks and has very low rolling resistance.
Read more
Specifications

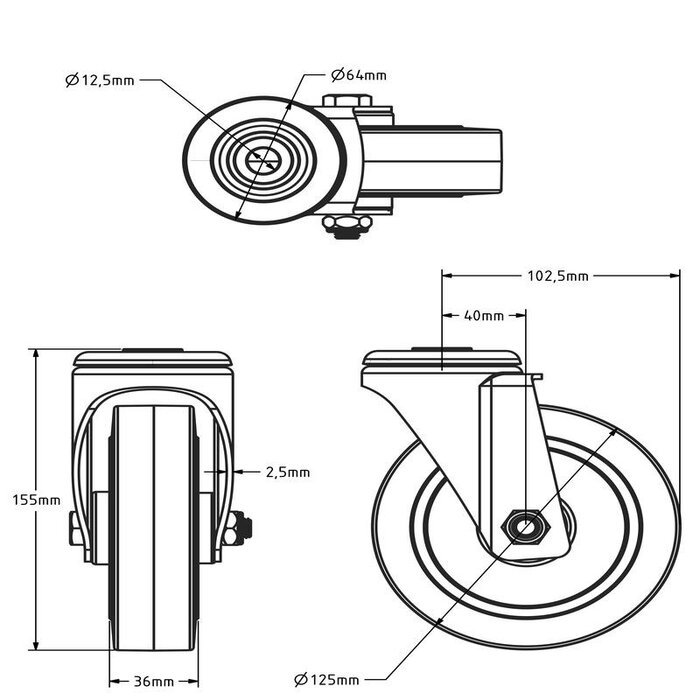

- Article number: 413.520
- Wheel diameter: 125 mm
- Wheel width: 36 mm
- Building height: 155 mm
- Bolt hole diameter: 12.2 mm
- Carrying capacity: 220 kg
- Gaff rash: 40 mm
- Type of wheel: Caster
- Assembly: Bolt hole attachment
- Fork: Steel, galvanized
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing / Needle bearing
- Bandage: Gray elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surface and outside area
