PU swivel castor with brake 200 mm - reinforced - ball bearing - 700 kg

Designed for ergonomics and efficiency

The ergonomic wheel reduces friction with the surface by 30% compared to conventional polyurethane or rubber materials. The ergonomic properties make moving heavy loads easier and require less effort.

• Elastic polyurethane: The material flexes during movement, which ensures energy return and a longer rolling duration.
• Cushioned tread: Due to the limited contact with the surface, less force is needed to roll or turn.

More technical details and benefits can be found in the blog about ergonomic wheels.

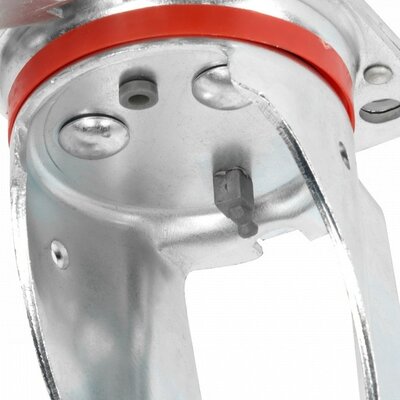

Forward brake

The yellow galvanized brake is placed on the opposite side of the swivel fork, unlike standard swivel casters. When pushing, the brake moves forward with the wheel, preventing protruding parts on the pushing side of the transport cart. This reduces the risk of collisions with the tibia and increases safety. The brake is fully adjustable and locks both the wheel and the fork simultaneously, without play.

Optional directional lock

These castors with a forward brake can be expanded with a directional lock. This mechanism blocks the swivel function and ensures that the wheel acts as a fixed wheel. The directional lock is mounted under the top plate and is easily operated with the foot. As soon as it is activated and the cart starts moving, the swivel wheel automatically turns into a fixed wheel, regardless of the starting position of the swivel fork. This contributes to stable and controlled movement.
