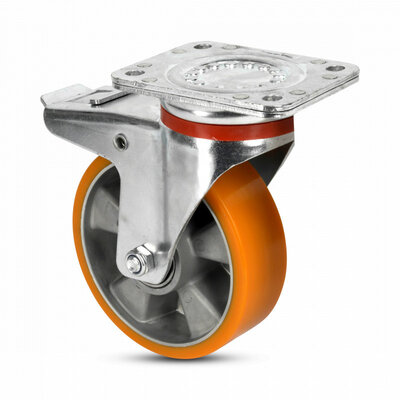

PU swivel castor with brake 160 mm - reinforced - ball bearing - 800 kg

Resistant to shocks and impacts

The reinforced swivel fork, combined with a thick polyurethane tire, has been developed for intensive use of swivel casters. The braked heavy-duty swivel casters are ideal for heavy-duty transport carts that are subject to shock loads and side impacts. The swivel fork has a double hardened ball track, securely riveted at multiple points, ensuring no play. The swivel castor has a short protruding brake that locks both the wheel and the swivel head simultaneously without play.

Wear-resistant and long service life

The polyurethane tire is highly resistant to rough concrete floors with steel chips, dust, oil, and other contaminants. Polyurethane is relatively hard but also elastic, so it hardly wears when rubbing against or coming into contact with rough surfaces. The reinforced 8 mm thick swivel ring is well lubricated and can be relubricated via the grease nipple. The thickened swivel ring is almost completely sealed and is additionally protected against dust and dirt by a red dust ring.

Low rolling resistance

Thanks to the natural properties of polyurethane, there is little friction with the ground, resulting in low starting resistance and long rolling continuity. The wheels are equipped with a precision ball bearing (6204 ZZ) on both sides.
