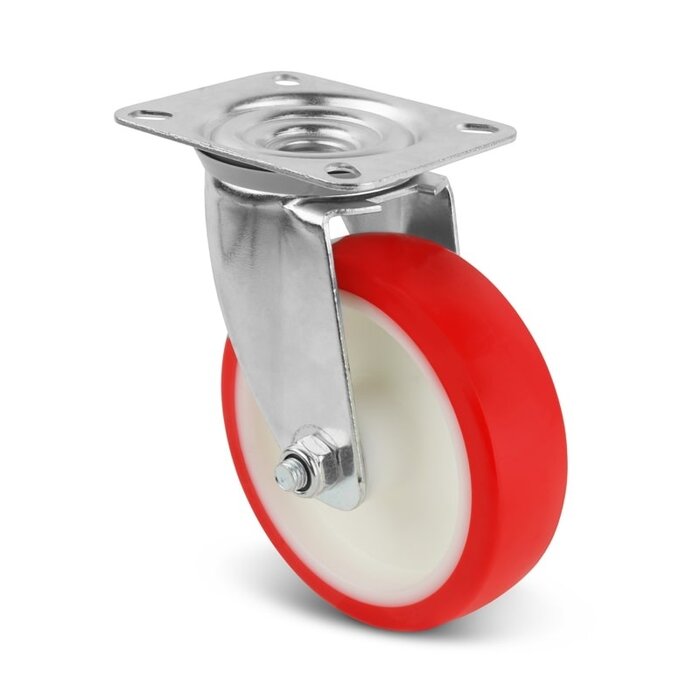

PU swivel castor 125 mm - roller bearing - 200 kg
Show all:
Casters,Polyurethane wheels
Description
PU swivel castor 125 mm with plate attachment - 200 kg
Swivel castors with plate attachment.
Pressed steel fork (galvanised ) with a sealed double ball bearing swivel.
Wheels with red polyurethane tyres (approx. 95 Shore A), injected onto white polyamide rims with roller bearings.
Read more

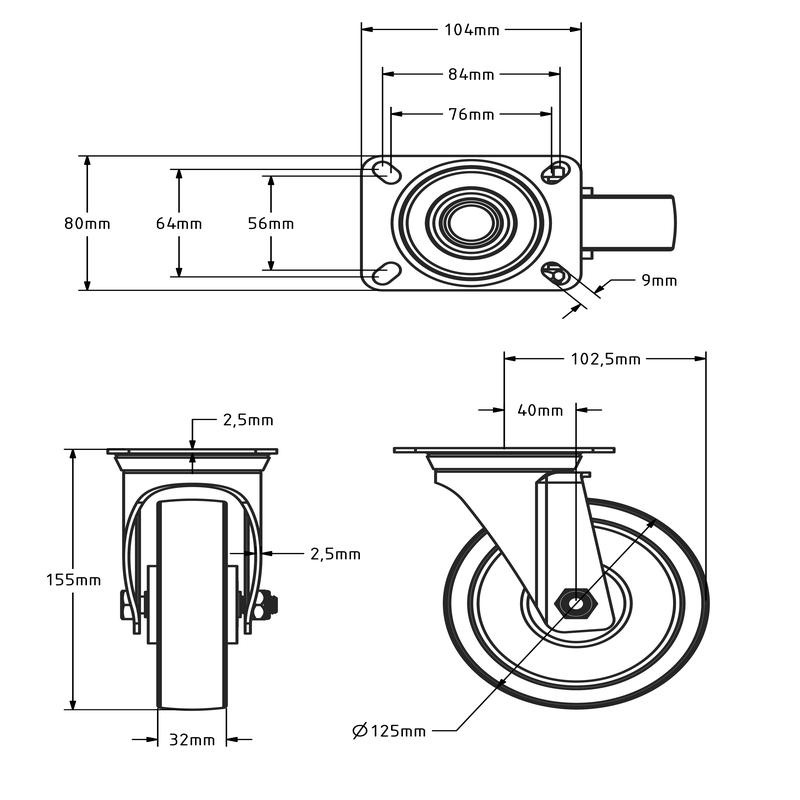

Specifications
- Article number: 430.120
- Wheel diameter: 125 mm
- Wheel width: 32 mm
- Building height: 155 mm
- Plate size: 104 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 200 kg
- Gaff rash: 40 mm
- Type of wheel: Caster
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 3
- Soundproof: 3
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
Show all
Specifications
- Article number: 430.120
- Wheel diameter: 125 mm
- Wheel width: 32 mm
- Building height: 155 mm
- Plate size: 104 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 200 kg
- Gaff rash: 40 mm
- Type of wheel: Caster
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 3
- Soundproof: 3
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
Show all
