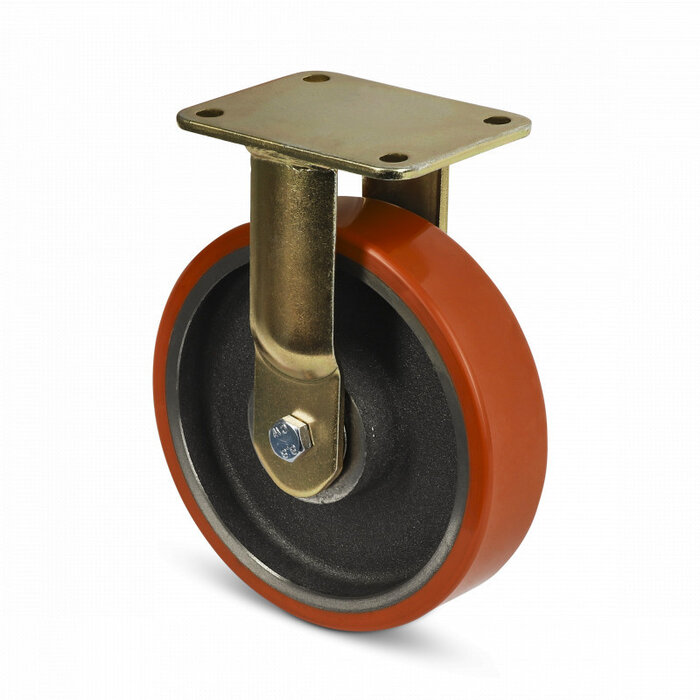

PU fixed castor 250 mm - ball bearing - 1200 kg
Polyurethane, steel welded fixed caster 250 mm - 1200 kg
The 250 mm fixed caster from Interwiel combines an extremely sturdy, steel-welded fork with a robust cast iron polyurethane wheel. These steel welded fixed castors are particularly useful in demanding situations where there are bumps in the floor, there is a high risk of collisions with forklift trucks, or in very robust conditions where reliability is of the utmost importance.
The steel welded trestle fork has an 8 mm mounting plate, firmly welded to the fork legs. This solid steel construction offers excellent resistance to lateral shocks. The trestle fork is yellow passivated, resulting in excellent corrosion resistance.
The wheel is composed of a vulcanized polyurethane tire, firmly chemically bonded to the cast iron rim. The polyurethane tire is resistant to cracks and indentations. The heavy fixed wheels are equipped with double precision ball bearings, which, in combination with the polyurethane, realize a relatively low rolling resistance and a high rolling continuity. These fixed wheels are designed for optimal performance in demanding industrial environments.
- Article number: 532.252
- Wheel diameter: 250 mm
- Wheel width: 50 mm
- Building height: 295 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 / 105 x 75 - Ø 11 mm
- Carrying capacity: 1,200 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Steel welded, galvanized
- Rim: Cast Iron
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyurethane, vulcanized
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
