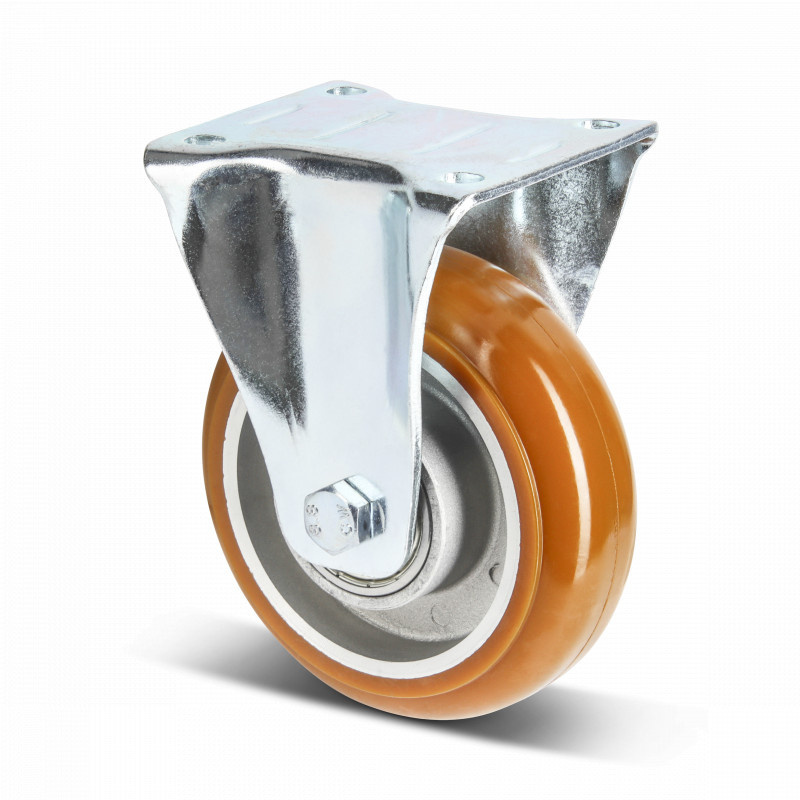

PU fixed castor 125 mm brown convex - 310 kg
Long rolling time and low rolling resistance
Thanks to the convex shape of the tread, this fixed castor rolls 20% lighter and with less rolling resistance than flat versions. This requires less physical effort, even under heavy loads. The wheel is suitable for applications that are moved regularly and where a smooth, light running is desired.
The polyurethane tread is distinguished by its wear resistance, low rolling resistance, and quiet operation. The material is suitable for industrial floors such as concrete, epoxy, and tiles. Due to its high resistance to rough surfaces, steel chips, dust, oil, and other contaminants, the fixed castor is widely applicable in production environments, logistics centers, workshops, and on transport equipment.
Suitable for intensive industrial use
The thickened 125 mm castor fork is designed for long-term, heavy-duty use. In combination with the thick, ergonomically shaped polyurethane tire, the castor wheel offers a balanced ratio between cushioning, load capacity, and rolling resistance, even under maximum load and continuous vibrations and lateral forces.
These castors have been developed for transport trolleys that have to withstand heavy goods, shock loads, and peak loads. Although a hard collision with a forklift truck can cause damage, the castors continue to function properly in the event of minor collisions, uneven floors, and occasional overloading. This makes them a reliable solution for industrial applications with varying mechanical loads.
- Article number: 459.222

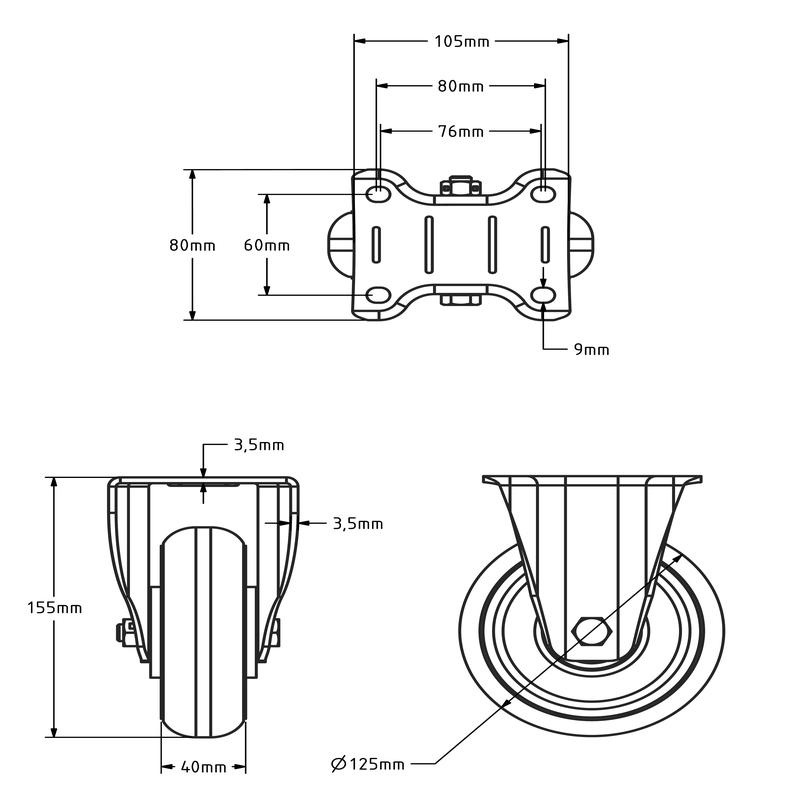

- Wheel diameter: 125 mm
- Wheel width: 40 mm
- Building height: 155 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 310 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Aluminum
- Wheel bearing: Double ball bearing, proportional
- Bandage: polyurethane, molded
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4.5
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough
- Article number: 459.222
- Wheel diameter: 125 mm
- Wheel width: 40 mm
- Building height: 155 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 310 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Aluminum
- Wheel bearing: Double ball bearing, proportional
- Bandage: polyurethane, molded
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4.5
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough
- Wear-resistant and floor-protecting PU tread
- More control over direction at longer distances
- 20% less rolling resistance due to bulged tread
- Not agile
