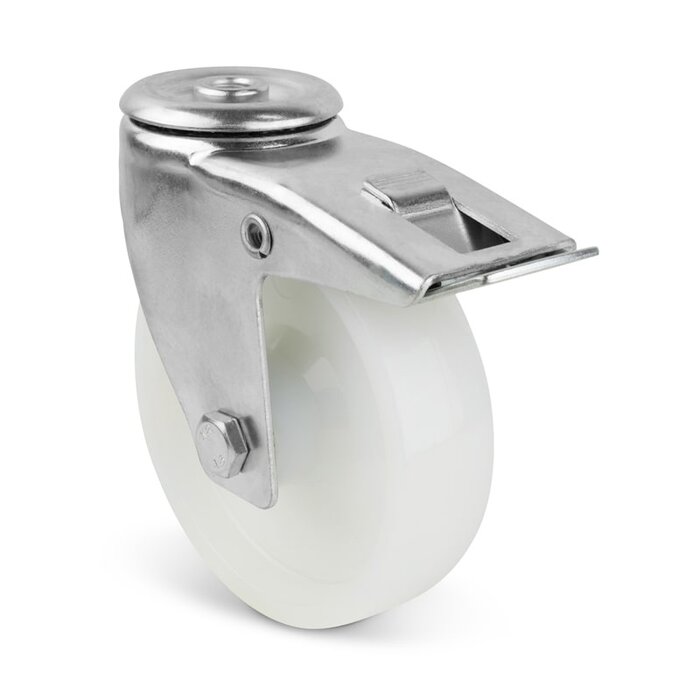

Nylon swivel castor with brake 80 mm - roller bearing - 130 kg
Show all:
Casters,Nylon wheels
Description
Nylon swivel castor 80 mm with brake and bolt hole 12 mm - 130 kg
Swivel castors with brake and bolt hole mounting.
Pressed sheet steel fork (galvanised) with double ball bearing swivel.
The brake locks the swivel ring and the wheel simultaneously.
Wheels made of polyamide (PA 6) with roller bearing.
Read more

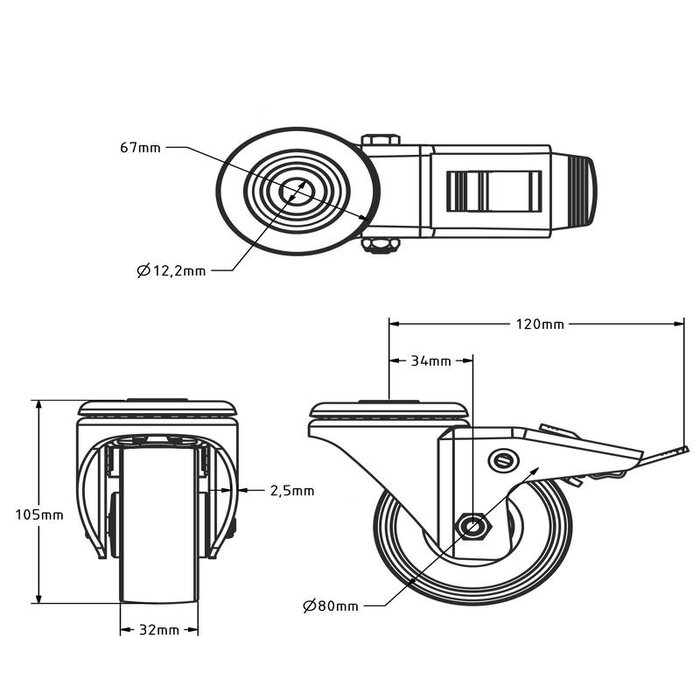

Specifications
- Article number: 421.511
- Wheel diameter: 80 mm
- Wheel width: 32 mm
- Building height: 105 mm
- Bolt hole diameter: 12.5 mm
- Carrying capacity: 130 kg
- Gaff rash: 34 mm
- Type of wheel: Swivel castor with brake
- Assembly: Bolt hole attachment
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Wheel bearing: Roller bearing
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
