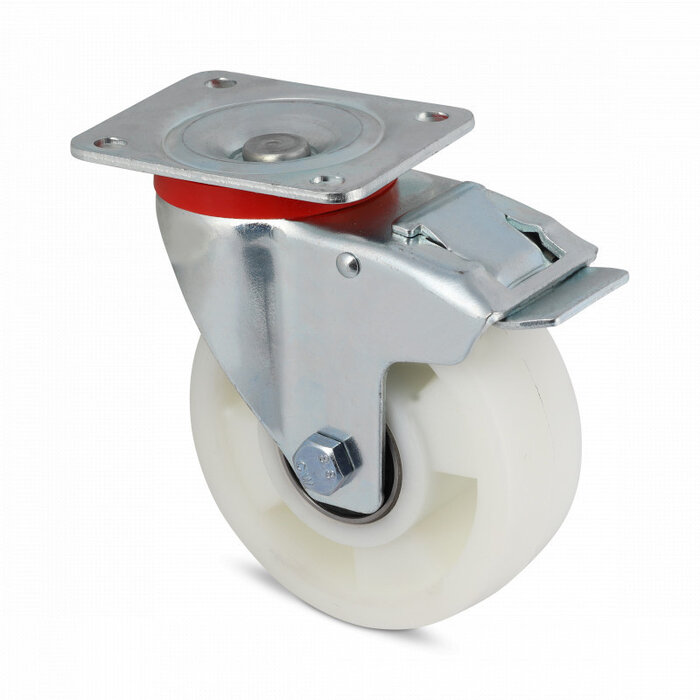

Nylon swivel castor with brake 125 mm - ball bearing - 350 kg
Show all:
Casters,Nylon wheels
Description
125 mm nylon swivel castor with ball bearing and plate brake, up to 350 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Reinforced pressed steel fork (galvanised) with a sealed double ball swivel.
Polyamide (PA 6) wheels with ball bearings.
Plate / fork thickness: 4 / 3.5 mm
Read more

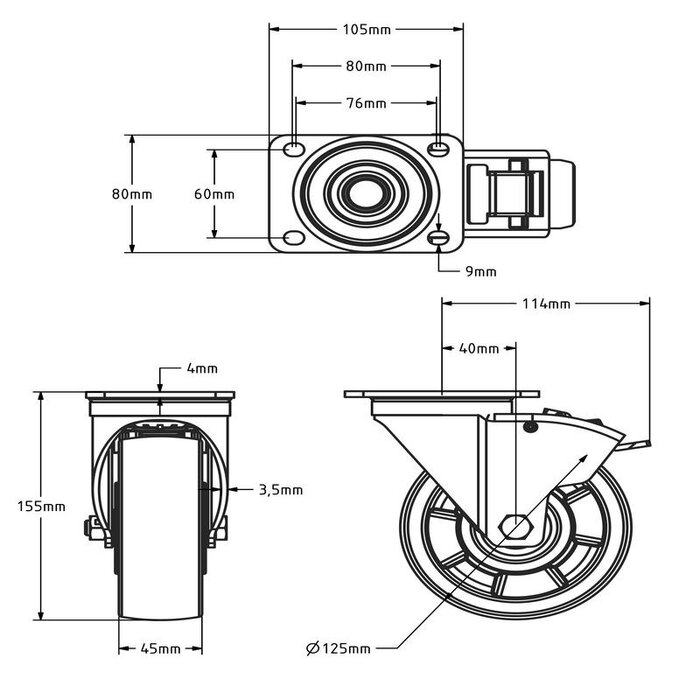

Specifications
- Article number: 455.221
- Wheel diameter: 125 mm
- Wheel width: 40 mm
- Building height: 155 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 350 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Brake: Locks wheel and swivel simultaneously
- Assembly: Plate mount
- Fork: Pressed steel, galvanized
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 Shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
