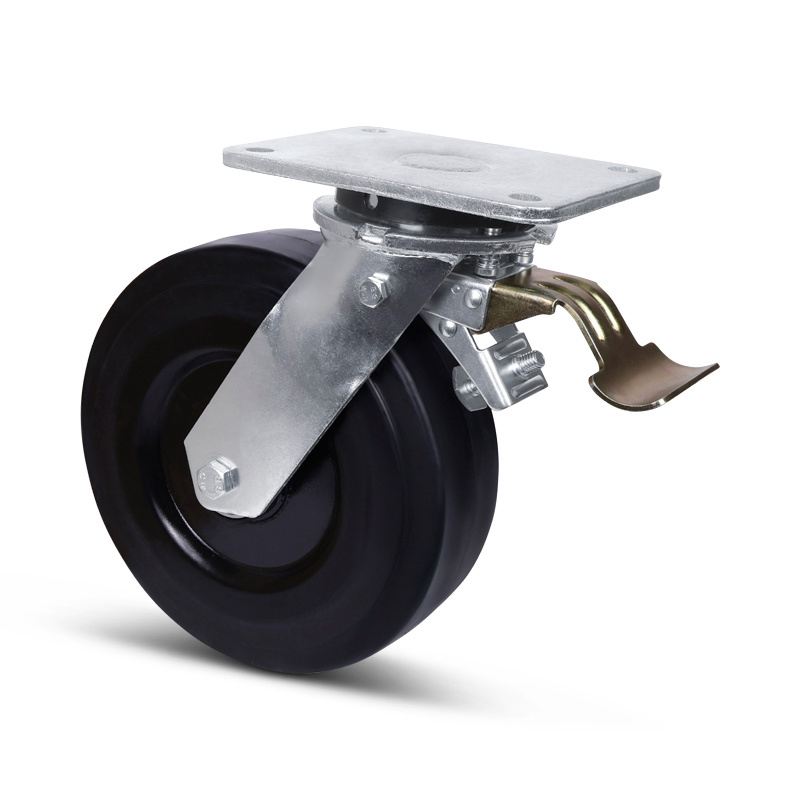

Heavy-duty elastic rubber swivel caster with brake, 250 mm – 1,000 kg
Heavy-duty elastic rubber swivel caster with brake, 250 mm, ball bearing and mounting plate – 1,000 kg
These heavy-duty swivel casters with brake feature an extremely robust welded steel fork combined with an elastic rubber wheel. The elastic rubber absorbs shocks and vibrations effectively, providing a comfortable and quiet ride. These heavy-duty casters with brake are ideal for demanding environments where durability, reliability and a long service life are essential. The swivel fork has a directional lock that simultaneously locks the swivel head and the wheel.
Speeds up to 16 km/h
The elastic rubber wheels are suitable for speeds of up to 16 km/h and can be used on a range of surfaces, including grass, paving stones and asphalt. The rubber absorbs shocks and vibrations effectively, providing a comfortable and stable ride. The wheels are also wear-resistant and strong enough for intensive outdoor use.
- Article number: 515.256
- Wheel diameter: 250 mm
- Wheel width: 80 mm
- Building height: 305 mm
- Plate size: 175 x 140 mm
- Bolt hole spacing: 140 x 105 / 133 x 76 - Ø 14 mm
- Carrying capacity: 1.500 kg
- Gaff rash: 1.500 kg
- Type of wheel: Swivel caster with brake
- Assembly: Plate mounting
- Fork: Welded steel, galvanized
- Rim: Steel, black powder-coated
- Wheel bearing: Double ball bearing, evenly distributed
- Bandage: Elastic rubber, vulcanised
- Tyre hardness: Approx. 68 Shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surfaces and outdoor areas
- Article number: 515.256
- Wheel diameter: 250 mm
- Wheel width: 80 mm
- Building height: 305 mm
- Plate size: 175 x 140 mm
- Bolt hole spacing: 140 x 105 / 133 x 76 - Ø 14 mm
- Carrying capacity: 1.500 kg
- Gaff rash: 1.500 kg
- Type of wheel: Swivel caster with brake
- Assembly: Plate mounting
- Fork: Welded steel, galvanized
- Rim: Steel, black powder-coated
- Wheel bearing: Double ball bearing, evenly distributed
- Bandage: Elastic rubber, vulcanised
- Tyre hardness: Approx. 68 Shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 5
- Temperature: - 20 / + 60 °C
- Suitable for: Flat surfaces and outdoor areas
