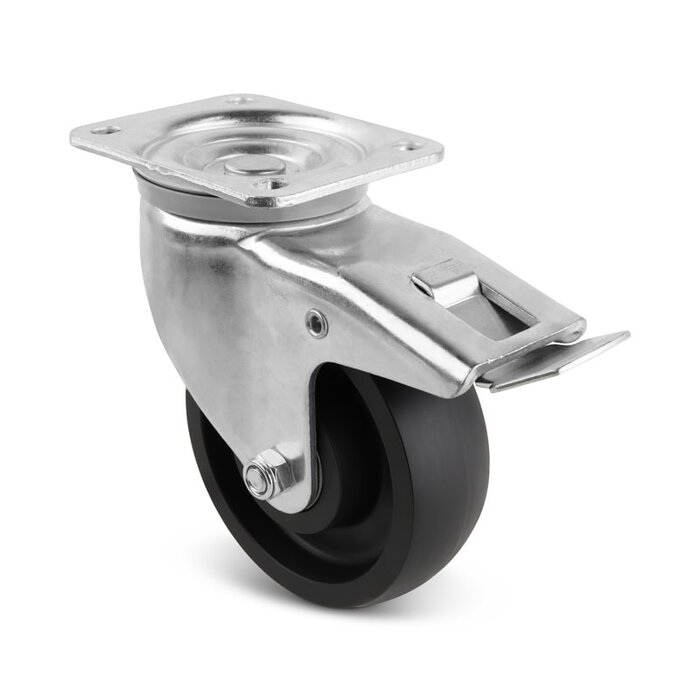

Heavy-duty nylon swivel castor with brake 250 mm - 1200 kg
Show all:
Casters,Nylon wheels
Description
Heavy-duty nylon swivel castor with brake 250 mm - 1200 kg
Heavy-duty swivel castors with a plate attachment.
The brake simultaneously blocks the wheel and the swivel ring.
The 5 mm pressed steel yoke is galvanised and has a sealed double ball swivel.
Wheels made of black polyamide PA6 with ball bearings.
Read more

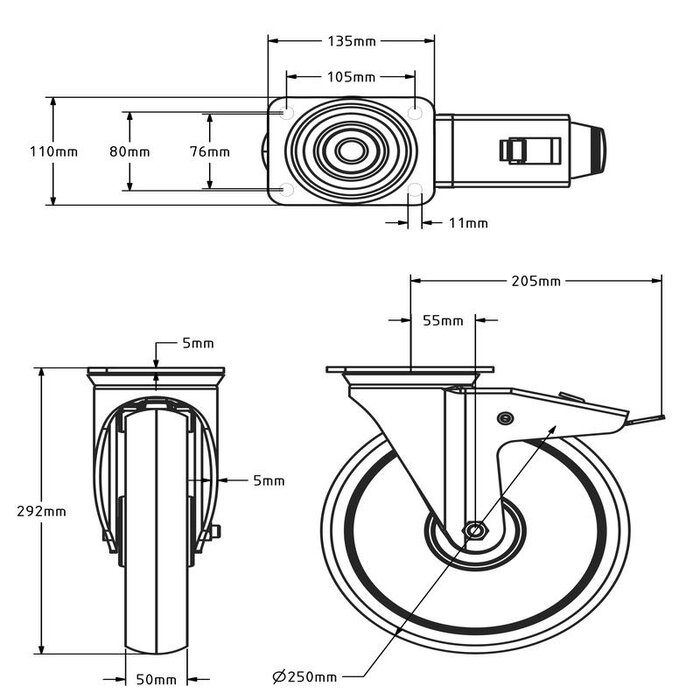

Specifications
- Article number: 457.251
- Wheel diameter: 250 mm
- Wheel width: 50 mm
- Building height: 292 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Carrying capacity: 1200 kg
- Gaff rash: 55 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Wheel bearing: Double ball bearing
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Soundproof: 1
- Temperature: - 20 / + 80 °C
- Suitable for: Flat surface
Show all
Specifications
- Article number: 457.251
- Wheel diameter: 250 mm
- Wheel width: 50 mm
- Building height: 292 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Carrying capacity: 1200 kg
- Gaff rash: 55 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, galvanized
- Brake: Locks wheel and swivel simultaneously
- Wheel bearing: Double ball bearing
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Soundproof: 1
- Temperature: - 20 / + 80 °C
- Suitable for: Flat surface
