Guide roller 70 mm - polyurethane - 200 kg
Show all:
Guide rollers
Description

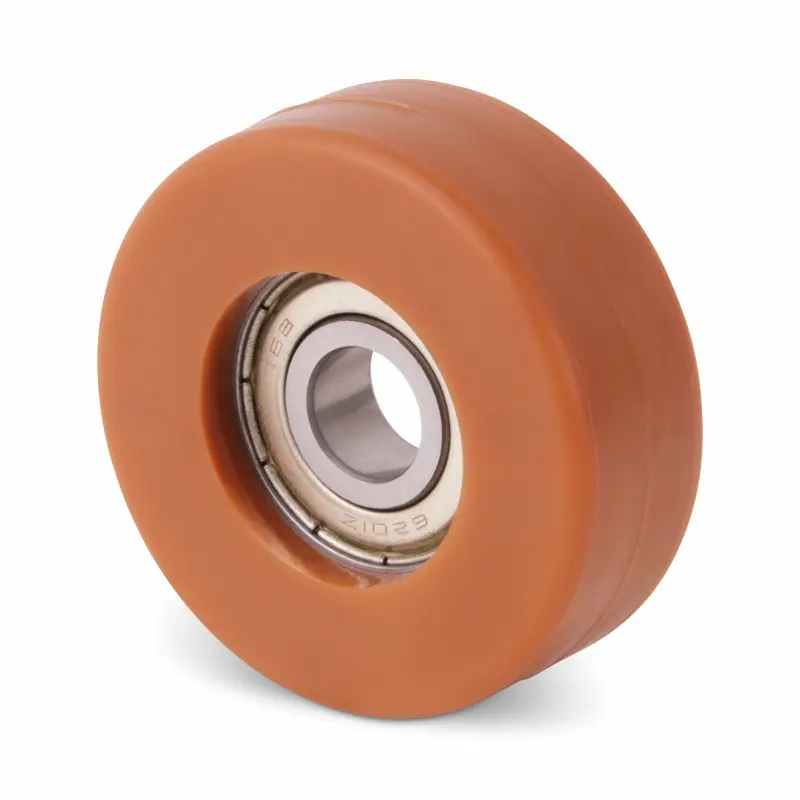

PU guide roller 70x35 mm with ball bearing, 20 mm bore - 200 kg
Guide rollers with an injected polyurethane tyre (approx. 95 Shore ) and 1 ball bearing (6204 2RS).
The rollers are resistant to oil, grease and numerous chemicals.
The bandage is shock-absorbing, wear-resistant and highly resilient.
Read more

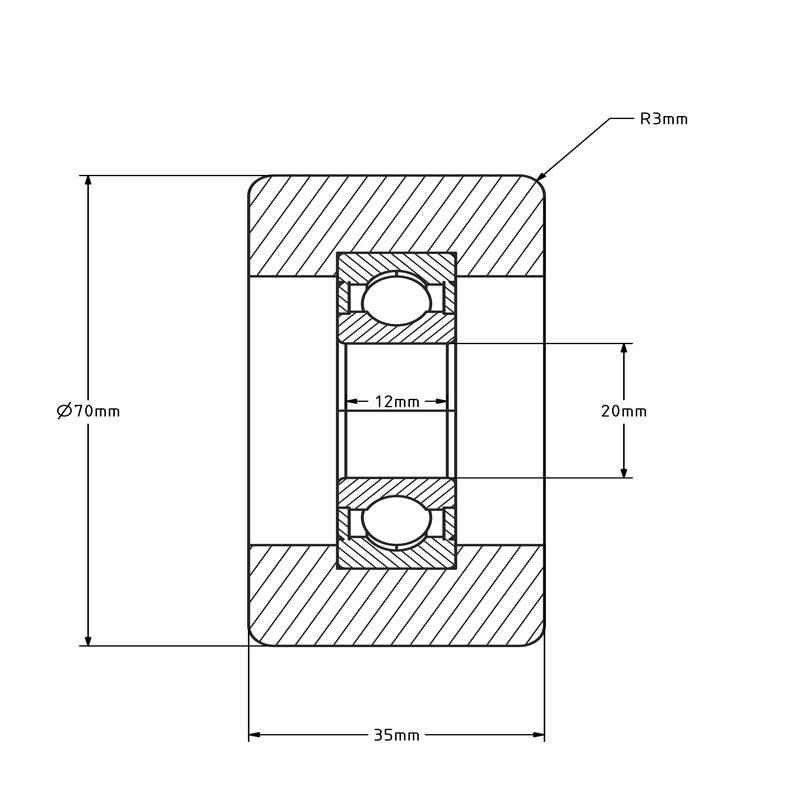

Specifications
- Article number: 193.244
- Wheel diameter: 70 mm
- Wheel width: 35 mm
- Shaft diameter: 20 mm
- Hub length: 14 mm
- Carrying capacity: 200 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6204 2RS
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 193.244
- Wheel diameter: 70 mm
- Wheel width: 35 mm
- Shaft diameter: 20 mm
- Hub length: 14 mm
- Carrying capacity: 200 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6204 2RS
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Temperature: - 20 / + 80 °C
