Guide roller 60x20 mm - Vulkollan - 110 kg
Show all:
Guide rollers
Description

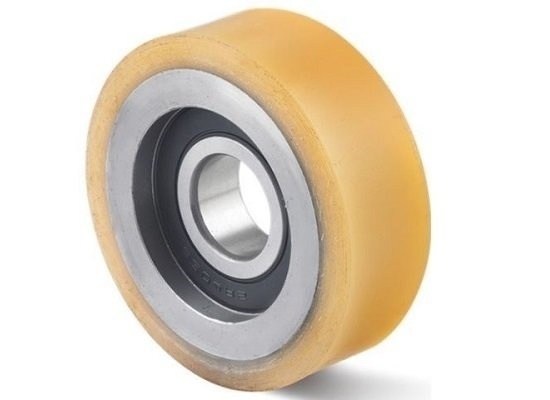

Vulkollan guide roller 60x20 mm with ball bearing, shaft hole 20 mm - 110 kg
Guide rollers with a Vulkollan band (92 Shore A).
Vulcanised on a steel rim with 1 ball bearing, type 6004 2RS.
The rollers are resistant to oil, grease and numerous chemicals.
The tyre is shock-absorbing, wear-resistant and highly load-bearing.
Read more

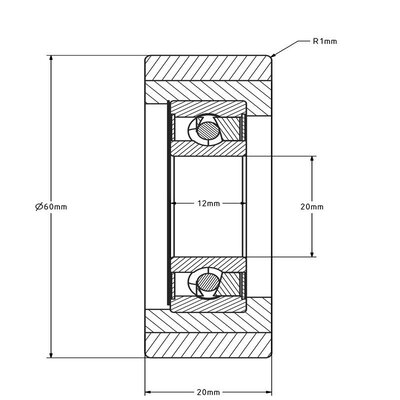

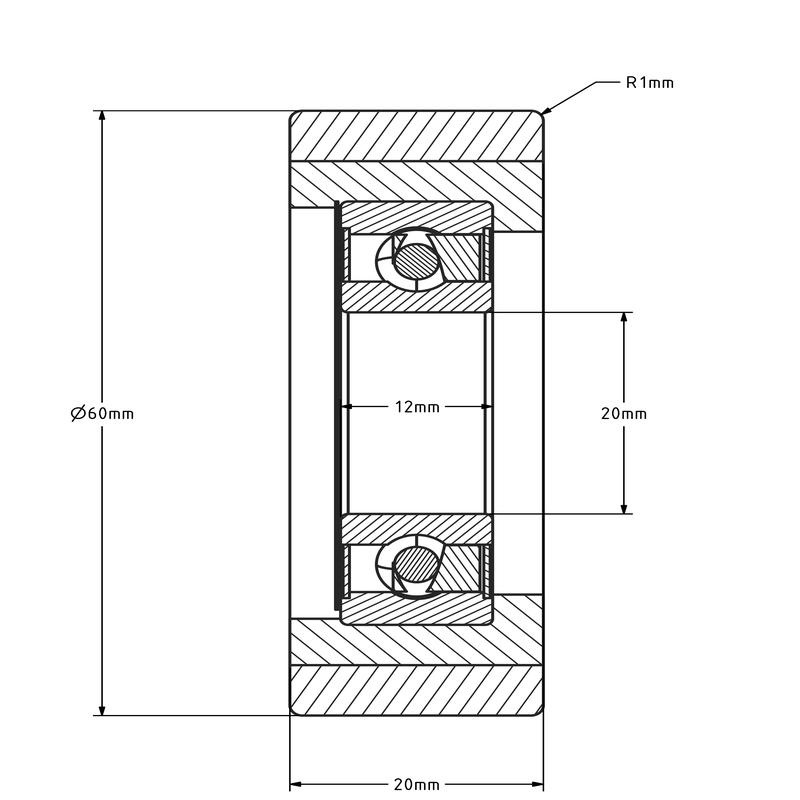

Specifications
- Article number: 192.230
- Wheel diameter: 60 mm
- Wheel width: 20 mm
- Shaft diameter: 20 mm
- Hub length: 12 mm
- Carrying capacity: 110 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6004 2RS
- Rim: Steel
- Bandage: Vulkollan
- Tyre hardness: 92 Shore A
- Temperature: - 20 / + 90 °C
