Guide roller 42x28 mm - polyamide - 110 kg
Show all:
Guide rollers
Description

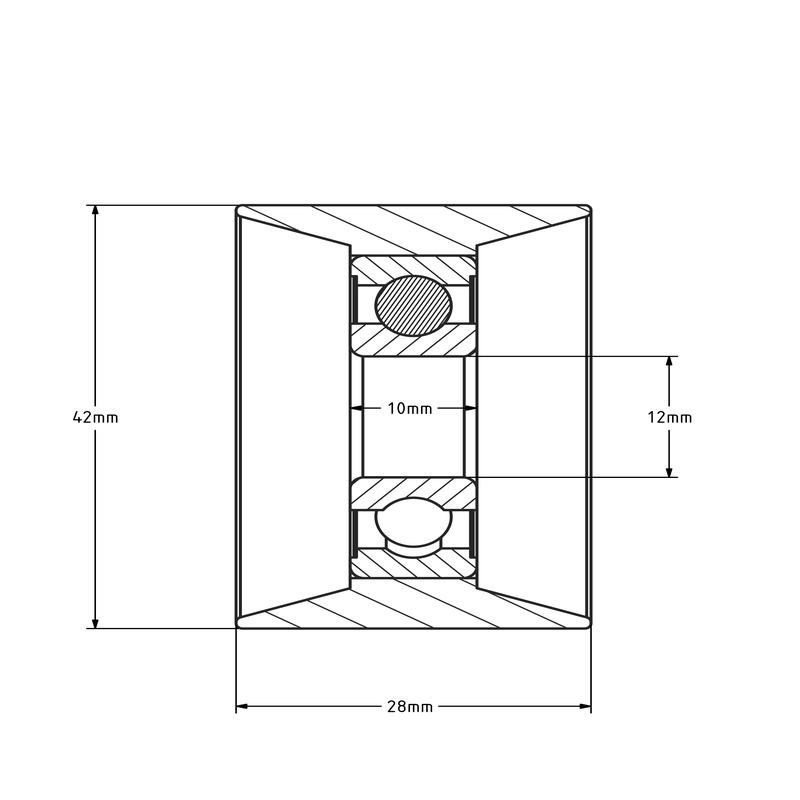

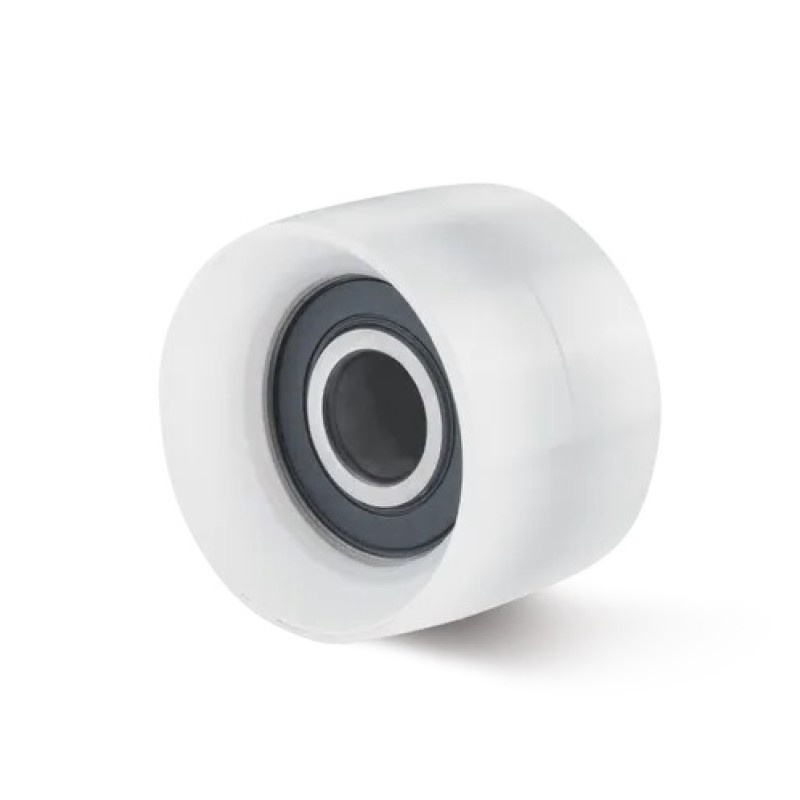

Nylon guide roller 42x28 mm with ball bearing, shaft hole 12 mm - 110 kg
Guide rollers made of polyamide PA6 with 1 ball bearing. (Stainless steel bearings available on request)
The rollers are wear-resistant, highly load-bearing and resistant to oil, grease and numerous chemicals.
Read more
Specifications
- Article number: 194.215
- Wheel diameter: 42 mm
- Wheel width: 28 mm
- Shaft diameter: 12 mm
- Hub length: 10 mm
- Carrying capacity: 110 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6201 2RS
- Bandage: Polyurethane, injected
- Tyre hardness: 75 Shore D
- Temperature: - 25 / + 80 °C
Show all
Specifications
- Article number: 194.215
- Wheel diameter: 42 mm
- Wheel width: 28 mm
- Shaft diameter: 12 mm
- Hub length: 10 mm
- Carrying capacity: 110 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6201 2RS
- Bandage: Polyurethane, injected
- Tyre hardness: 75 Shore D
- Temperature: - 25 / + 80 °C
Show all
