BackHomeWheelsGuide roller 38x38 mm - polyamide - 80 kg

Guide roller 38x38 mm - polyamide - 80 kg

Show all: Guide rollers
Guide roller 38x38 mm - polyamide - 80 kg
Guide roller 38x38 mm - polyamide - 80 kg
In stock
1 day
Required fields:
    -+
    Get a competitive quote within 24 hours
    Get a competitive quote within 24 hours
    Free 3D drawings (STP files)
    Quick delivery times
    OEM & customisation possible
    Description

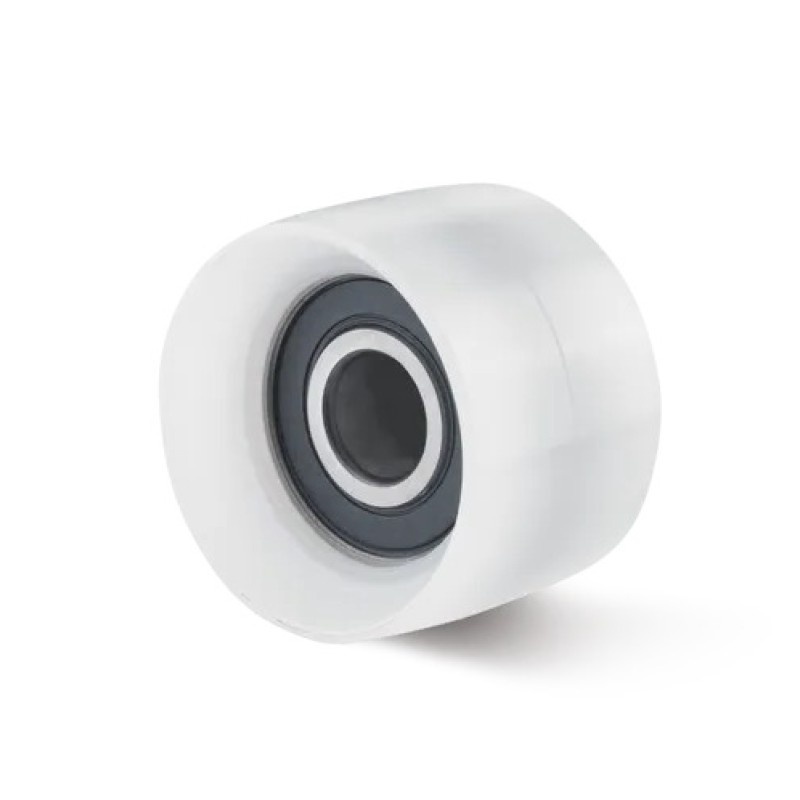

    Nylon guide roller 38x38 mm with ball bearing, shaft hole 12 mm - 80 kg


    Guide rollers made of polyamide PA6 with 1 ball bearing. (Stainless steel bearings available on request)
    The rollers are wear-resistant, highly load-bearing and resistant to oil, grease and numerous chemicals.

    Read more
    Specifications
    • Article number: 194.212
    • Wheel diameter: 38 mm
    • Wheel width: 38 mm
    • Shaft diameter: 12 mm
    • Hub length: 10 mm
    • Carrying capacity: 80 kg
    • Type of wheel: Guide roller
    • Wheel bearing: Single ball bearing, centered
    • Bandage: Polyamide (PA6)
    • Tyre hardness: 75 shore D
    • Temperature: - 25 / + 80 °C
    Show all
    Specifications
    • Article number: 194.212
    • Wheel diameter: 38 mm
    • Wheel width: 38 mm
    • Shaft diameter: 12 mm
    • Hub length: 10 mm
    • Carrying capacity: 80 kg
    • Type of wheel: Guide roller
    • Wheel bearing: Single ball bearing, centered
    • Bandage: Polyamide (PA6)
    • Tyre hardness: 75 shore D
    • Temperature: - 25 / + 80 °C
