Guide roller 35x15 mm - polyurethane - 60 kg
Show all:
Guide rollers
Description

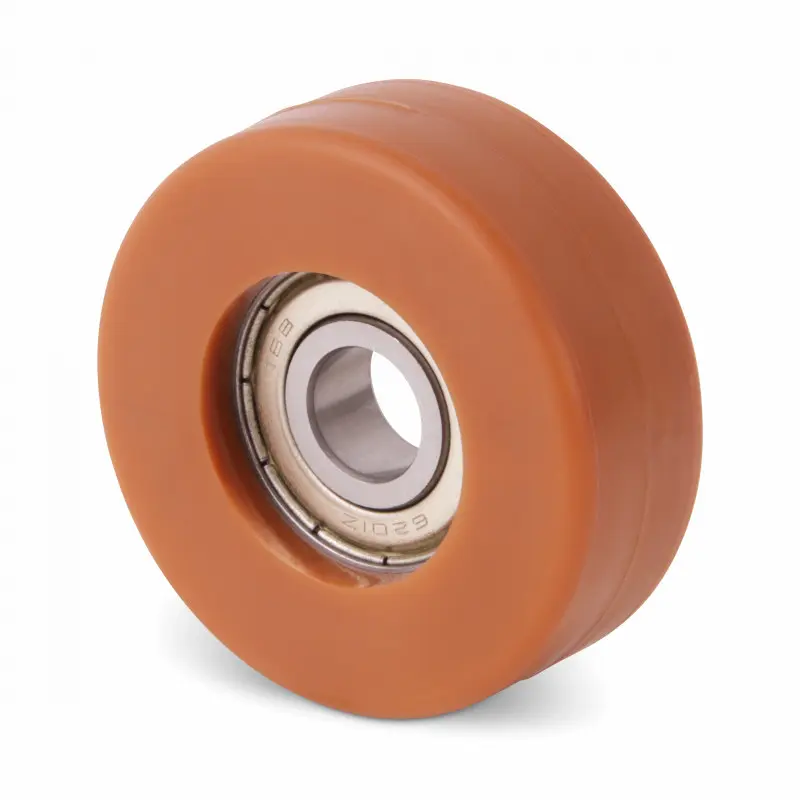

PU guide roller 35x15 mm with ball bearing, shaft hole 10 mm - 60 kg
Guide rollers with an injected polyurethane band (approx. 95 Shore) and 1 ball bearing. (Stainless steel bearings available on request)
The rollers are resistant to oil, grease and numerous chemicals.
The tyre is shock-absorbing, wear-resistant and highly load-bearing.
Discount from 100 pieces, contact us for a quote.
Read more

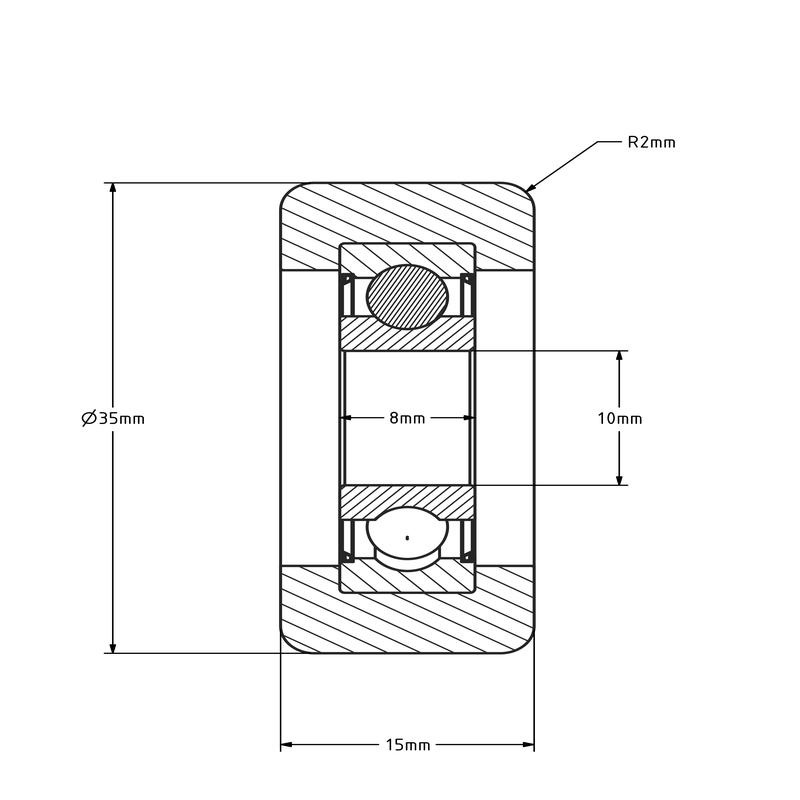

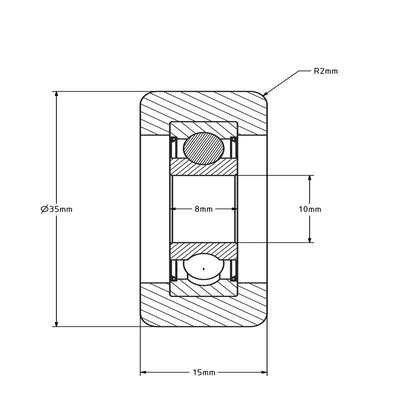

Specifications
- Article number: 193.212
- Wheel diameter: 35 mm
- Wheel width: 15 mm
- Shaft diameter: 10 mm
- Hub length: 8 mm
- Carrying capacity: 60 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6000 2Z
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 193.212
- Wheel diameter: 35 mm
- Wheel width: 15 mm
- Shaft diameter: 10 mm
- Hub length: 8 mm
- Carrying capacity: 60 kg
- Type of wheel: Guide roller
- Wheel bearing: Single ball bearing, centered
- Bearing type: 6000 2Z
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Temperature: - 20 / + 80 °C
