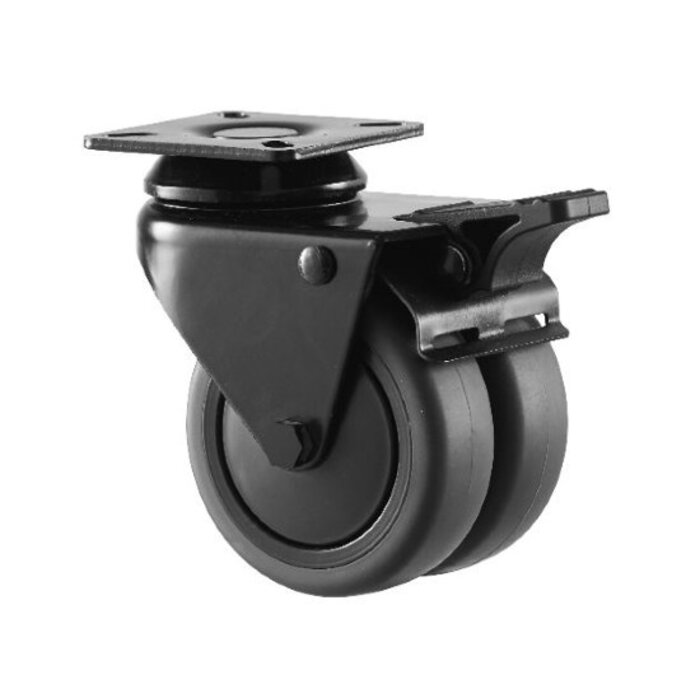

Double black swivel castor with brake 75 mm - plate - 100 kg
Show all:
Casters,Rubber wheels
Description
Double black swivel castor with brake 75 mm with plate
Castor wheels with a plate attachment.
Sheet steel pressed fork with a black coating and a double ball swivel.
The brake simultaneously blocks the swivel and the wheel.
Double wheels withablack/dark grey TPR rubber tyre (non-marking), injected on a plastic rim with ball bearings and black wheel caps.
The soft rubber tyre does not leave any marks on the floor, but plasticisers can be released on untreated floors.
Read more
Specifications

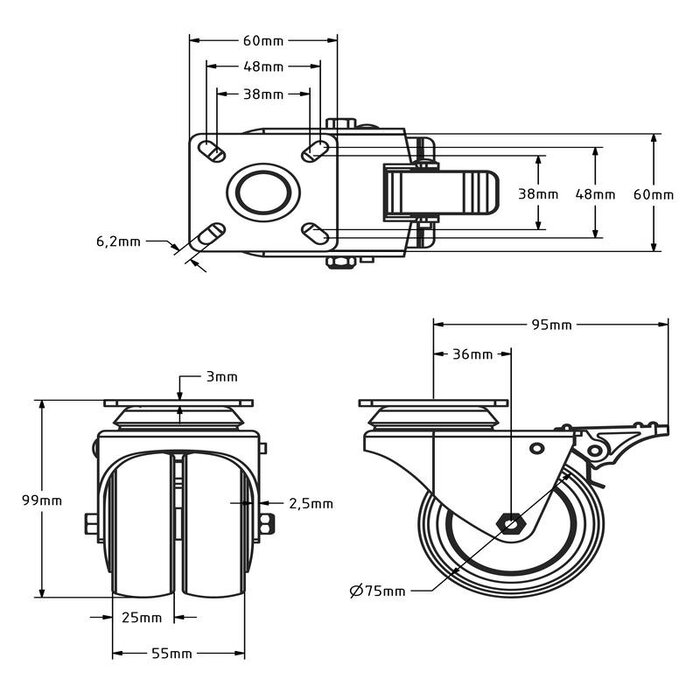

- Article number: 384.221
- Wheel diameter: 75 mm
- Wheel width: 25 (2x) mm
- Building height: 99 mm
- Plate size: 60 x 60 mm
- Bolt hole spacing: 38x38 / 48x48 - Ø 6.2 mm
- Carrying capacity: 100 kg
- Gaff rash: 36 mm
- Type of wheel: Swivel castor with brake
- Assembly: Plate mount
- Fork: Steel, black coated
- Brake: Locks wheel and swivel simultaneously
- Rim: Polypropylene
- Wheel bearing: Ball bearing
- Bandage: Black thermoplastic rubber (TPR), injected
- Tyre hardness: approx. 88 shore A
- Rolling resistance: 3
- Wear-resistant: 3
- Soundproof: 3
- Temperature: - 20 / + 60 °C
- Suitable for: Flat and rough surface
