Cast nylon swivel castor 125 mm - 2000 kg
Show all:
Casters,Nylon wheels
Description

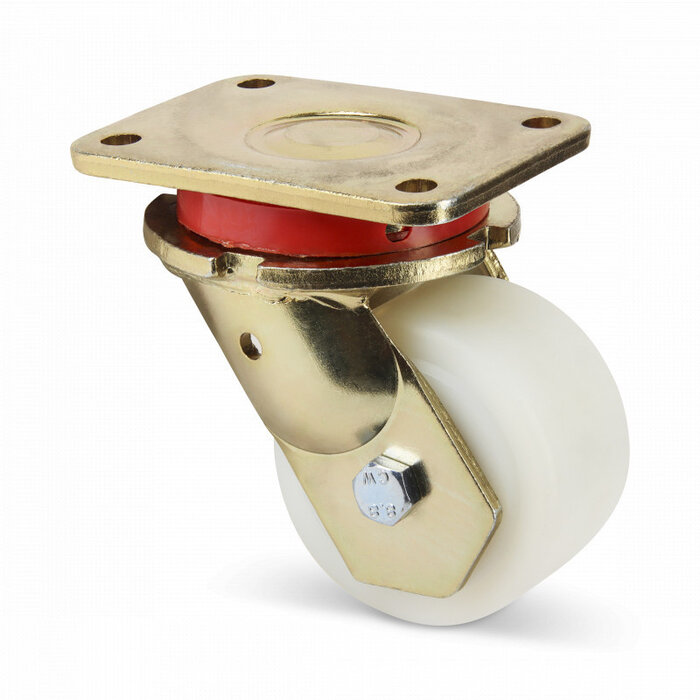

Cast nylon swivel castor 125 mm - 2000 kg
Swivel castors with a plate attachment.
Sheet steel welded fork (yellow galvanised ) with an axial ball bearing and tapered roller bearing in the swivel head.
Cast nylon wheels with ball bearings.
Read more

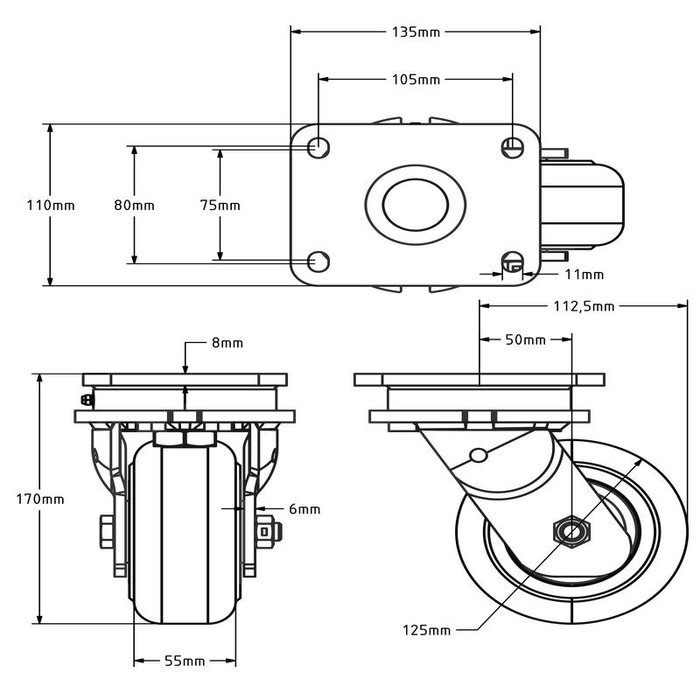

Specifications
- Article number: 525.220
- Wheel diameter: 125 mm
- Wheel width: 55 mm
- Building height: 170 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 / 75 - Ø 11 mm
- Carrying capacity: 2000 kg
- Gaff rash: 50 mm
- Type of wheel: Caster
- Assembly: Plate mount
- Fork: Yellow, passivated (galvanized)
- Wheel bearing: Double ball bearing
- Bandage: Cast nylon (PA6G)
- Tyre hardness: approx. 80 shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
