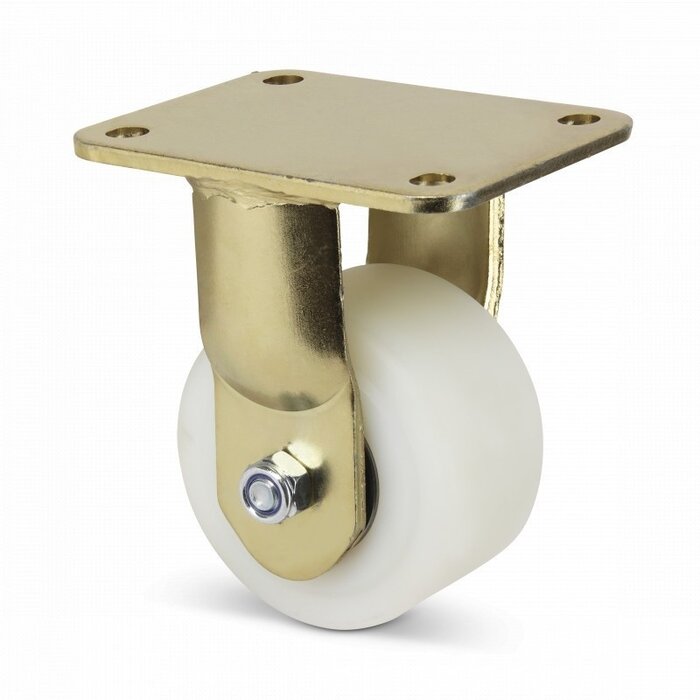

Cast nylon fixed castor 100 mm - 1500 kg
Show all:
Casters,Nylon wheels
Description
Cast nylon fixed caster 100 mm - 1500 kg
Castor wheels with a plate attachment.
Sheet steel welded fork (yellow galvanised).
Cast nylon wheels with ball bearings.
Read more
Specifications
- Article number: 525.217
- Wheel diameter: 100 mm
- Wheel width: 55 mm
- Building height: 148 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 / 75 - Ø 11 mm
- Carrying capacity: 1500 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Yellow, passivated (galvanized)
- Wheel bearing: Double ball bearing
- Bandage: Cast nylon (PA6G)
- Tyre hardness: approx. 75 shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
