120 mm flanged wheel - polyamide PA6 - 380 kg
Show all:
Flanged wheels
Description

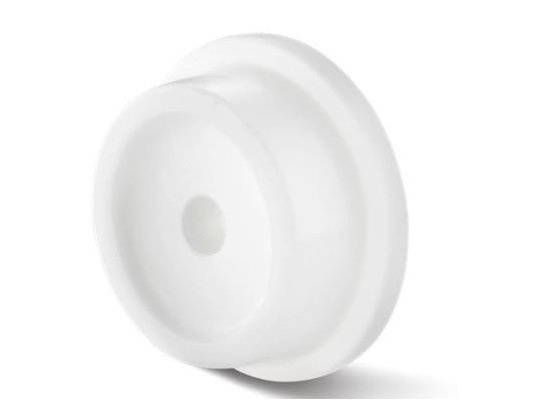

Nylon flanged wheel 120 mm with plain bearing, axle hole 38 mm - 380 kg
Polyamide (PA6) flanged wheels with a plain bearing.
The flanged wheel rim () and the tread are a perfect replica and have a 3º incline.
Read more
Specifications
- Article number: 942.052
- Wheel diameter without flange: 120 mm
- Wheel width without flange: 30 mm
- Wheel diameter with flange: 150 mm
- Wheel width with flange: 42 mm
- Hub length: 45 mm
- Shaft diameter: 38 mm
- Carrying capacity: 380 kg
- Type of wheel: Flange wheel
- Material: Polyamide PA6
- Wheel bearing: Slide bearing
- Temperature: - 25 / + 90 °C
Show all
Specifications
- Article number: 942.052
- Wheel diameter without flange: 120 mm
- Wheel width without flange: 30 mm
- Wheel diameter with flange: 150 mm
- Wheel width with flange: 42 mm
- Hub length: 45 mm
- Shaft diameter: 38 mm
- Carrying capacity: 380 kg
- Type of wheel: Flange wheel
- Material: Polyamide PA6
- Wheel bearing: Slide bearing
- Temperature: - 25 / + 90 °C
Show all
